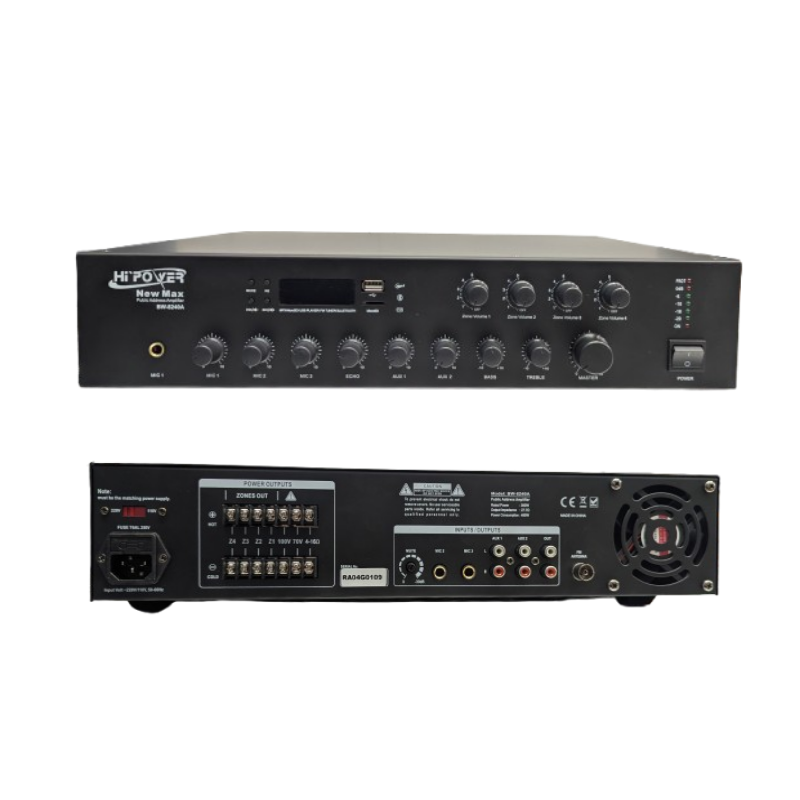

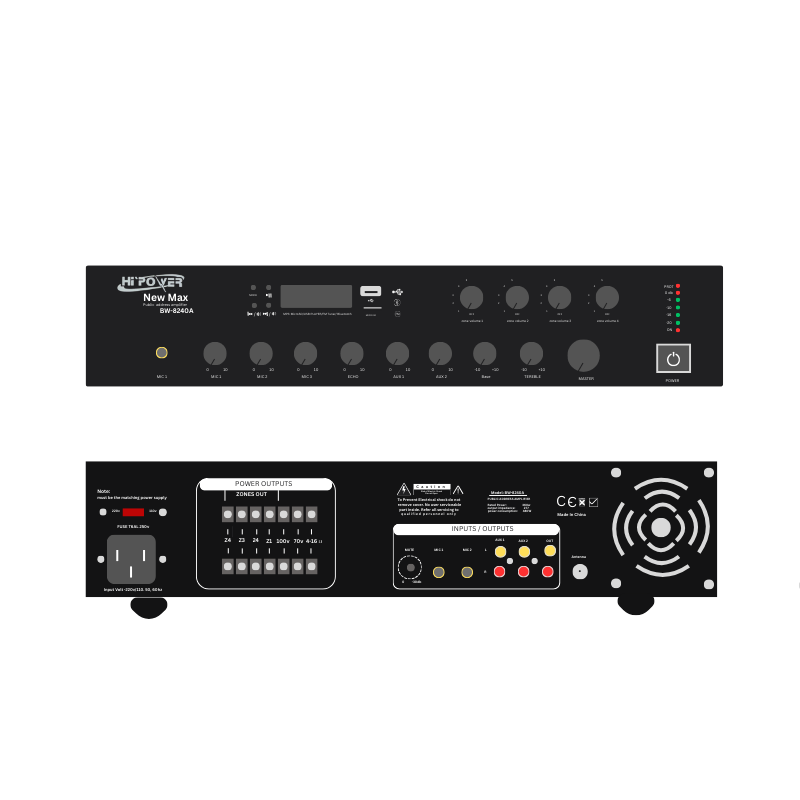

BW 8240A Amplifier | BW-8240A Professional Power Amplifier – 240W Output, Multi-Input, Advanced Protection, and Tone Control

Product Description

Specification about BW 8240A Amplifier

• Model: BW-8240A with Bluetooth, memory card, FM USB mode

• Power Supply: 220-240V / 50Hz

• Power Consumption: 480W

• Power Output: 240W with output regulation of <3dB

• Frequency Response: 100Hz – 16,000Hz

• Low Distortion: THD <0.3% at 1kHz (1/3 rated power)

• Speaker Outputs: Supports 4–16Ω, 70V & 100V systems

• Aux Output: 600Ω, 1V (0dBV)

• Inputs:

  • Mic 1, 2, 3: 600Ω, 6mV, unbalanced

  • Aux 1, 2, 3: 10kΩ, 250mV, unbalanced

• Signal-to-Noise Ratio:

  • Mic 1, 2, 3: >66dB

  • Aux 1, 2: >70dB

• Tone Control: ±10dB at 100Hz (Bass) / ±10dB at 10kHz (Treble)

• Protection Features: AC fuse, DC voltage, overload, and short-circuit protection

• Backup Power: 24V DC

• Muting Function: Adjustable 0–30dB

• Dimensions (W×H×D): 440 × 92 × 330 mm

• Net Weight: 14.5 kg
