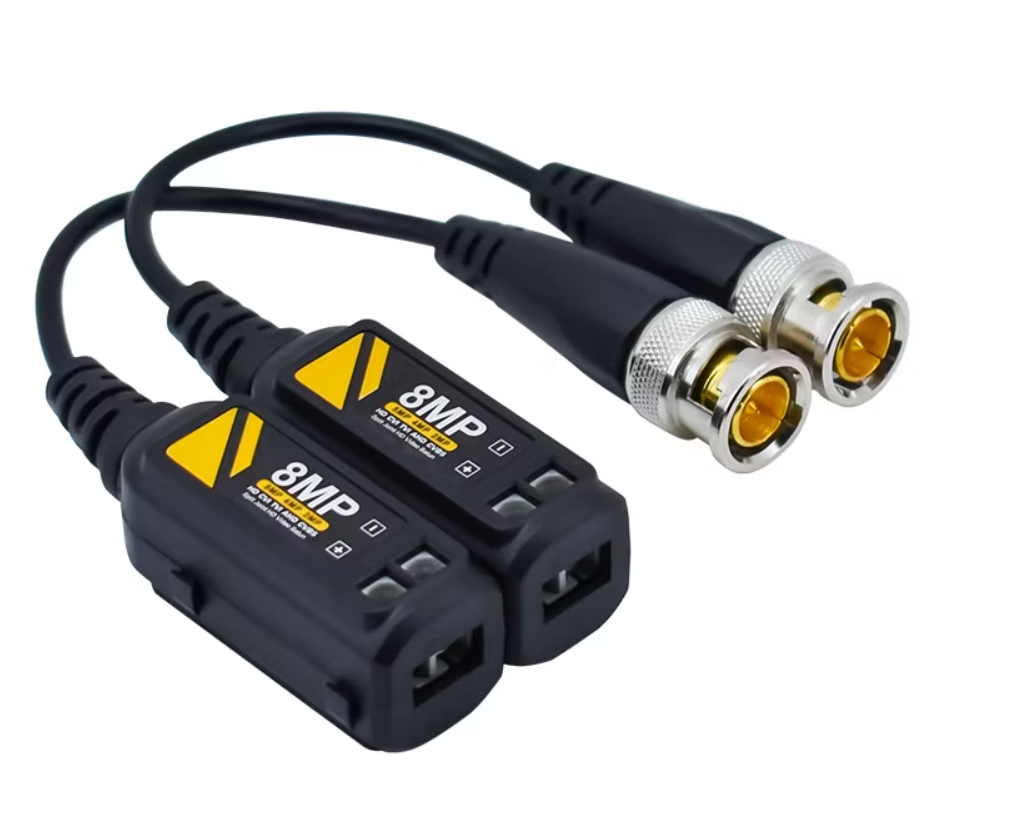

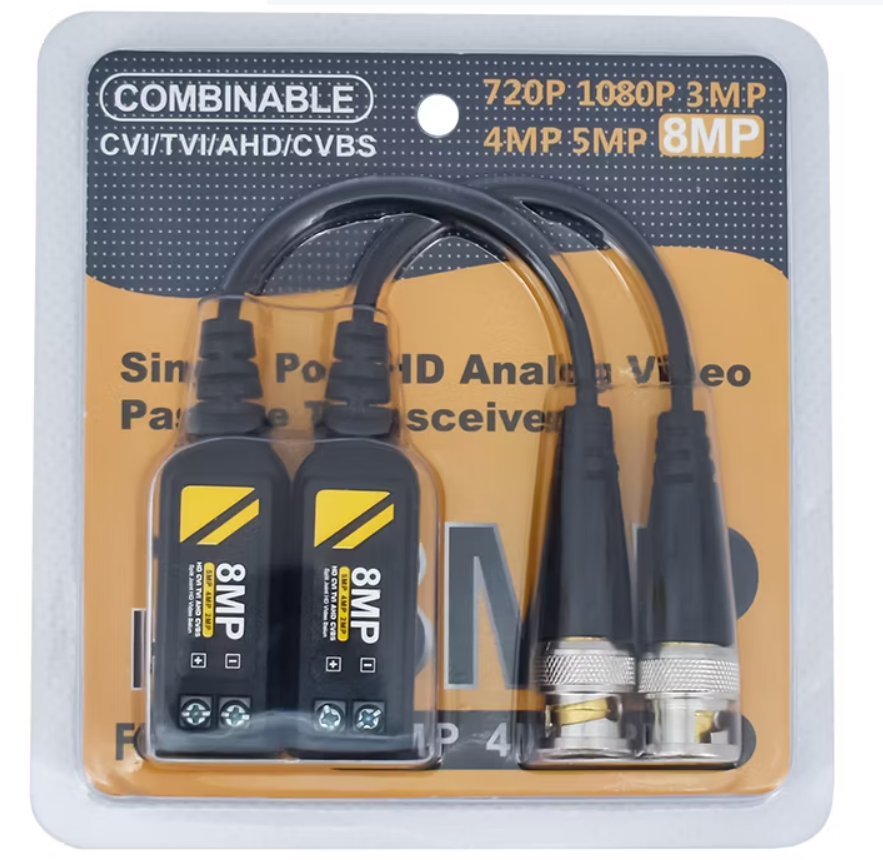

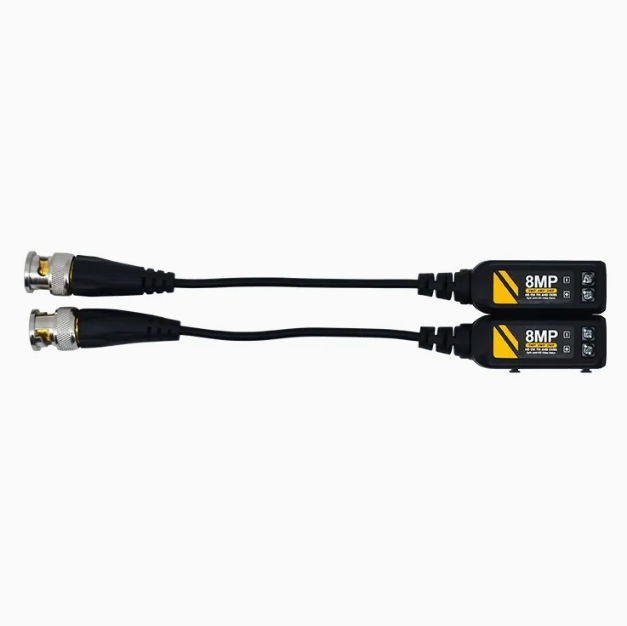

8MP HD Passive Video Balun – High-Definition CCTV UTP Transmitter for AHD/CVI/TVI/CVBS Cameras
Product Description
About 8MP HD Passive Video Balun – High Definition Transmission Over UTP Cable
Experience reliable, high-quality video transmission with the Channel Passive Video Balun, designed for professional CCTV installations. Built to support HD-AHD, CVI, TVI, and CVBS cameras, this compact and efficient device ensures crystal-clear video over long distances without requiring external power.
Key Features of 8MP HD Passive Video Balun
- Supports HD Formats: Compatible with 1MP, 2MP, 3MP, 4MP, 5MP, and 8MP cameras.
- Universal Compatibility: Works with AHD, CVI, TVI, and CVBS video formats.
- Long Transmission Distance:
- AHD/CVI: up to 400 meters
- TVI/CVBS: up to 300 meters
- No Power Required: Passive design for quick and easy installation.
- Connectors: BNC male (coaxial) to push terminal (UTP).
- High Anti-Interference: 60dB crosstalk and noise immunity for stable signal transmission.
- ESD & Surge Protection:
- ESD: Level 3 contact and air discharge protection.
- Coaxial: 2KV protection.
- UTP: 2KV (differential), 4KV (common) surge protection.
- Compatible with CAT5/5E/6 Cables: Transmit full-motion CCTV video through standard network cables.
- Cost-Efficient: Save 30%–50% on cabling compared to traditional coaxial setups.
- Durability: MTBF > 10,000 hours for long-term stability.
- Compact & Easy to Install: Space-saving design with screw terminal blocks.
